O-Gauge Rolling Road Premium Edition – 6 Axle - DCC concepts
179,95
stock: 2
remove add
Order

Shipping Costs:
Netherlands: € 4,95 free from € 35,-
Belgium: € 6,95

sameday shipping if ordered before 08:00
(Mondays - Thursdays)

Product number: DCC-DCM-RRO-6

Product description

O-Gauge Rolling Road Premium Edition – 6 Axle - DCC concepts

The DCC concepts O Gauge Rolling Road is easy to use and reliable.

Installation and use.
The Rolling Road works well with AC, DC & DCC.

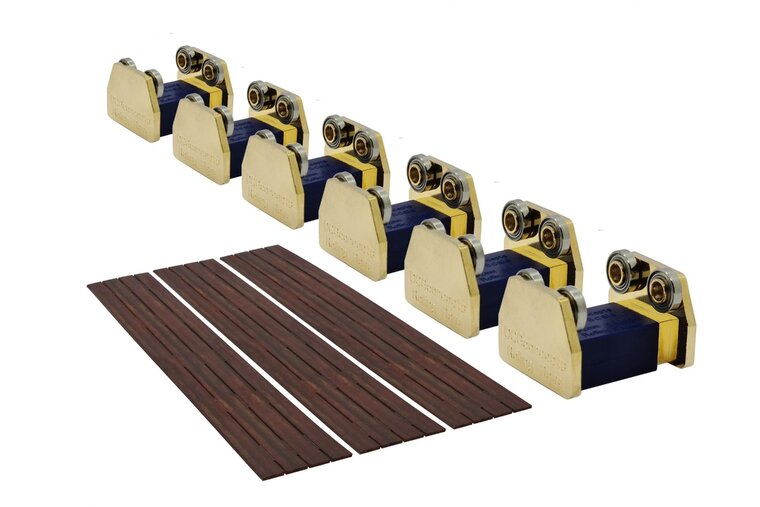

To make adjusting spacing easier every roller contains a strong Neodymium magnet to allow easy adjustment and to hold it in place.

To give the magnets something to work with "magnetic plates" are included in the set. They are etched to represent wooden planks so the can be installed on your layout. Secure these with silicone or contact-type adhesive in an appropriate position on top of the sleepers and between the rails.

Once the plates are secured, place the Roller sets over them at an appropriate spacings and connect the track power. The Roller sets will collect power directly from the rails so you are now ready to go.

Place your locomotive on top of the Roller sets and control it as if it was on the track. It will operate in place allowing examination for service, careful adjustment of decoder set-up or running in of a new Loco.

Service and Maintenance

Keep the track area that will be used with your rolling road clean so that it can transfer the power reliably.
DCCconcepts Roller sets have been gold plated, so they will never tarnish and always conduct power reliably. (Please – do not use abrasive cleaners. A quick wipe with alcohol or similar is all that will ever be needed)
The stainless-steel roller-bearings are pre-lubricated but you can of course add a little fine oil if you wish.


Manual (pdf)


More DCC concepts products

This product is not suitable for children under 14 years. This is not a toy.

Product number: DCC-DCM-RRO-6
